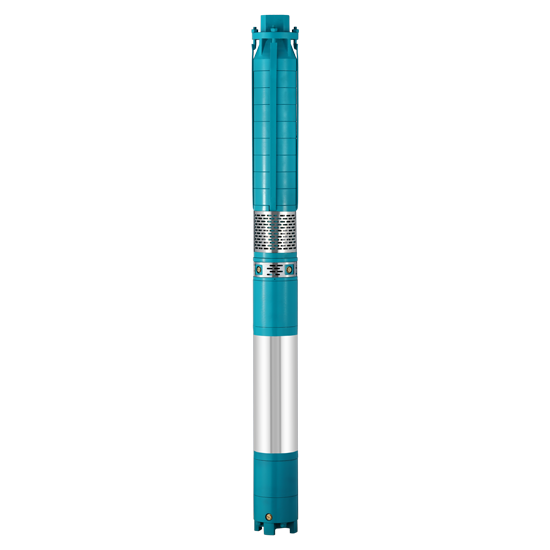

V5 Submersible Pump Set

pump-image

V5 Submersible Pump Set

Characteristics

Motor Rating H.P 3.0 TO 15.0 3.0 TO 15.0
KW 2.2 TO 11 2.2 TO 11
Stage No 3 TO 30 3 TO 15
Head Range Meter 10 TO 250 15 TO 120
Discharge LPM 50 TO 700 200 TO 700
Outlet MM 50 mm to 65 mm 65 mm
Inch 2" to 2.5" 2.5"
RPM - 2850 2850
Frequency HZ 50 50
Application Irrigation, Farm,
Agriculture, Industrial,
Gardens, Fountains Fire
Fighting System.		 Irrigation, Farm,
Agriculture, Industrial,
Gardens, Fountains Fire
Fighting System.

Material Of Construction - Motor:

  • Oil Seal : Nitrile butyl rubber
  • Motor Shaft : SS-420
  • Motor Body Pipe : J4
  • Motor Bush : LTB-4 / Teflon
  • Thrust bearing assembly : SS - 420 & Carbon
  • Diaphragm : High Nitrile Butyl Rubber
  • Motor Base : Cast Iron
  • Housing Set : Cast Iron

Material Of Construction - Pump:

  • Check Valve Housing : Cast iron / SS-304
  • Check Valve : SS-304 / Nylon
  • Outer Shell : J4 / SS – 304
  • Impeller : Noryl / Nylon / SS-410
  • Bowl : Noryl / Cast Iron / SS-304
  • Counter Bush : LTB-4 / SS - 304
  • Pump Bush : NBR / LTB 4
  • Pump Sleeve : SS-410
  • Suction : Cast iron / SS-304
  • Pump Shaft : SS-410
  • Coupling / Pump Couple : SS-410

Salient Features :

  • SS 304 Grade Investment Casting Bowl and Impeller in Radial Flow Series.(GRS -Series)
  • 9 Mtr. Head Per Stage In Radial Flow Series.
  • Specially designed high performance thrust bearing (SS-420 tilting pad with carbon plate) to withstand axial thrust loads.
  • Dynamically balanced roating parts ensure minimum vibration and longer life
  • Motor Portion covered with corrosion resistant stainless steel J4 shell
  • More durability and hygiene
  • High operating efficiency
  • Extremely hardwearing water lubricated bearing
  • Thread type motor construction ensures service feasibility
  • Specially designed Deep Drawn type pump ensures perfect alignment and Thereby increases the life of the pump set
  • Designed for wide voltage operation
  • Best alternative for JET & Compressor pump set
  • Additional intermediate bearing in higher stage pumps
  • Fully SS pumps are available in (GRS - Series)
