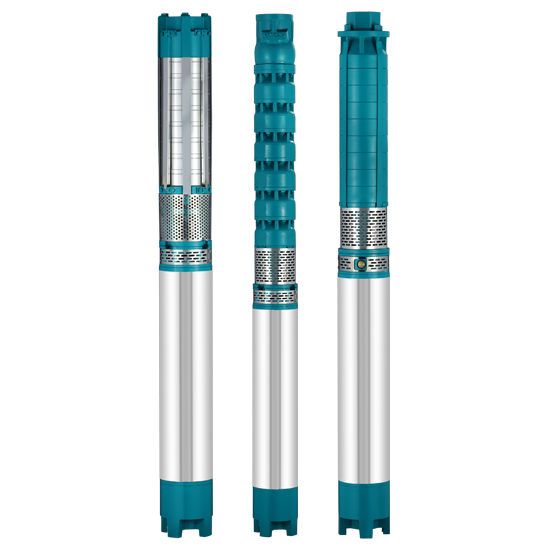

V6 Submersible Pump Set

pump-image

V6 Submersible Pump Set

Characteristics

MP6RF/RFH
(RADIAL FLOW)		 MP6RFH SS/CI
(RADIAL FLOW)		 MP6MF/MFH
(MIXED FLOW)
Motor Rating H.P 3.0 TO 30.0 3.0 TO 30.0 3.0 TO 30.0
KW 2.2 TO 22 2.2 TO 22 2.2 TO 22
Stage No 3 TO 40 2 TO 30 3 TO 25
Head Range Meter 10 TO 400 10 TO 450 10 TO 350
Discharge LPM 30 TO 1200 60 TO 750 90 TO 1200
Outlet MM 50 mm to 75 mm 50 MM TO 65 MM 65 MM TO 75 MM
Inch 2" to 3" 2" TO 2.5" 2.5" TO 2.5"
RPM - 2850 2850 2850
Frequency HZ 50 50 50
Application Irrigation, Farm,
Agriculture, Industrial,
Gardens, Fountains Fire
Fighting System. 		Irrigation, Farm,
Agriculture, Industrial,
Gardens, Fountains Fire
Fighting System. 		Irrigation, Farm,
Agriculture, Industrial,
Gardens, Fountains Fire
Fighting System.

Material Of Construction - Motor:

  • Oil Seal : Nitrile butyl rubber
  • Motor Shaft : SS - 420
  • Motor Body Pipe : J4
  • Motor Bush : LTB-4 / Teflon
  • Thrust bearing assembly : SS - 420 & Carbon
  • Diaphragm : High Nitrile Butyl Rubber
  • Motor Base : Cast Iron / SS - 304
  • Housing Set : Cast Iron / SS - 304

Material Of Construction - Pump:

  • Check Valve Housing : (Outlet) Cast iron / SS – 304
  • Check Valve : SS-410 / Nylon
  • Impeller : SS - 304 / SS-410 / Nylon
  • Bowl : SS - 304 / SS-410 / Cast Iron
  • Counter Bush : SS - 420
  • Pump Bush : NBR / LTB 4
  • Pump Sleeve : SS-410
  • Suction : Cast iron
  • Pump Shaft : SS-410
  • Coupling / Pump Couple : SS-410

Salient Features :

  • SS 304 Grade Investment Casting Bowl and SS-304 Grade Impeller in radial flow series
  • 55 feet head per stage in radial flow series
  • Specially designed high performance thrust bearing (SS-420 Tilting Pad with Carbon plate) to with stand axial thrust loads.
  • Dynamically balanced rotating parts ensures minimum vibration and longer life
  • Motor portion covered with corrosive resistance Stainless steel J4 shell
  • More durability and hygiene
  • High operating efficiency
  • Extremely hardwearing water lubricated bearing
  • Specially designed Deep Drawn type pump ensures perfect alignment and Thereby increases the life of the pump set
  • Designed for wide voltage operation
  • Additional intermediate bearing in higher stage pumps
  • Fully SS pump set are available in SS - 304 Grade
