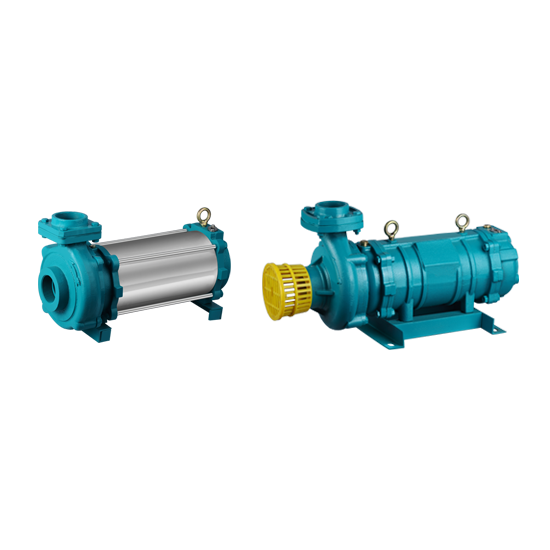

Horizontal Openwell Submersible

pump-image

Horizontal Openwell Submersible

Characteristics

Motor Rating H.P 0.5 to 20
KW 0.37 to 15
Stage No 1
Head Range Meter 6 to 78
Discharge LPM 20 to 2200
Outlet MM 25mm to 100mm
Inch 1" to 4"
RPM - 2850
Frequency HZ 50
Application Farm, Irrigation,
Agriculture, Industrial,
Gardens, Fountains,
Domestic

Material Of Construction - Motor:

  • Oil Seal : Nitrile butyl rubber
  • Motor Shaft : SS-420
  • Motor Body : Cast Iron / J4
  • Motor Bush : LTB-4 / Teflon
  • Thrust bearing assembly : SS - 420 & Carbon & Teflon
  • Base : Cast Iron
  • Bracket : Cast Iron
  • Flange : Cast Iron
  • Casing : Cast Iron
  • Impeller : Cast Iron

Salient Features :

  • No Suction And Priming Problem
  • Noiseless Operation
  • High Operating Efficiency
  • No Need Of Pump House
  • Extremely Tough And Hard Wearing
  • Lubricated Journal Bearings Are Used
  • Can Be Easily Dismantled And Repaired
  • Dynamically Balanced Rotating Parts
  • Ensures Minimum Vibration And Longer Life
  • Designed For Wide Voltage Fluctuations
  • Motor Body Available In J4 Grades / CI FG - 250 Grades
  • Motor Designed With Higher Cooling Effect
  • Ensures Longer Life.
