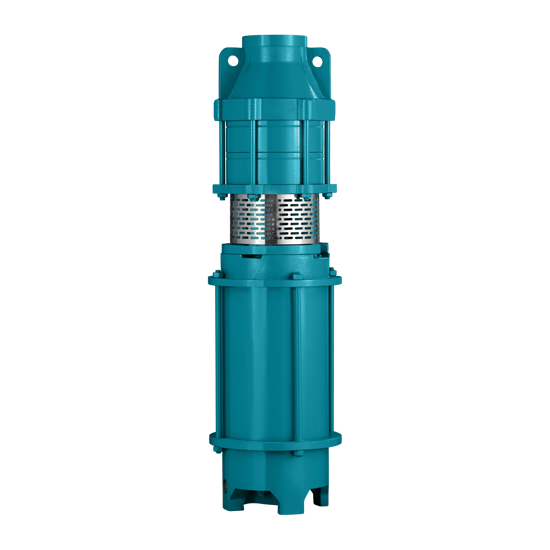

Vertical Openwell Submersible

pump-image

Vertical Openwell Submersible

Characteristics

Motor Rating H.P 3.0 TO 20.0
KW 2.2 TO 15
Stage No 2 TO 10
Head Range Meter 8 TO 180
Discharge LPM 150 TO 1250
Outlet MM 75 MM
Inch 3"
RPM - 2850
Frequency HZ 50
Application Farm, Irrigation,
Agriculture, Industrial,
Gardens, Fountains,
Domestic

Material Of Construction - Motor:

  • Oil Seal : Nitrile butyl rubber
  • Motor Shaft : SS - 420
  • Motor Body : M.S
  • Motor Bush : LTB-4 / Teflon
  • Thrust bearing assembly : SS - 420 & Carbon
  • Base : Cast Iron
  • Housing : Cast Iron
  • Flange : Cast Iron
  • Suction : Cast Iron
  • Impeller : SS-304
  • Bowl : Cast Iron

Salient Features :

  • No Suction And Priming Problem
  • Noiseless Operation
  • High Operating Efficiency
  • No Need Of Pump House
  • Extremely Tough And Hard Wearing
  • Lubricated Journal Bearings Are Used
  • Can Be Easily Dismantled And Repaired
  • Dynamically Balanced Rotating Parts Ensures Minimum Vibration And Longer Life
  • Designed For Wide Voltage Fluctuations.
  • Motor Designed With Higher Cooling Effect
  • Ensures Longer Life.
